mail邮件模块
1. 概述
- mail模块用于发送邮件通知。
- 官方文档链接 https://docs.ansible.com/ansible/2.9/modules/mail_module.html
- 你可能想知道为什么自动发送电子邮件？在复杂的环境中，有时会有无法实现自动化的过程，这可能是因为您缺乏实现自动化的权限，也可能是因为并非所有人都同意采用通用方法。
- 如果你不能自动执行某一特定步骤，但该步骤是非阻塞的，那么向责任方发送一封电子邮件，让他们履行自己的职责，这是一种将责任推给他人的优雅方式。
- 发送邮件也可以作为一种通知团队中一个或多个成员已（成功）采取特定行动的方式。
2. 参数
| 参数 | 描述 |
|---|---|
| attach list | 邮件附件，默认[] |
| bcc list | 暗抄送，默认[] |
| body string | 邮件主体，默认$subject |
| cc list | 抄送，默认[] |
| charset string | 邮件编码，默认utf-8 |
| from string | 邮件发送人，默认root |
| headers list | 追加的头部信息 |
| host string | 邮件服务器，默认localhost |
| password string | SMTP邮件服务器密码 |
| port integer | 邮件服务器端口号，默认25 ，有效端口号范围[1, 65534] |
| secure string | 安全协议，可选值：always加密连接；never不使用SSL/TLS协议；starttls尝试SSL/TLS协议连接，如果不能这样则会失败；try尝试使用SSL/TLS协议连接，如果不能这样但不失败 |
| subject string | 邮件主题，必须字段 |
| subtype string | 类型，使用html还是默认的plain普通文本 |
| timeout integer | 超时时间，默认20秒 |
| to list | 收件人，默认root |
| username string | SMTP邮件服务器用户名 |
3. 官方示例
- name: Example playbook sending mail to root
mail:
subject: System {{ ansible_hostname }} has been successfully provisioned.
delegate_to: localhost
- name: Sending an e-mail using Gmail SMTP servers
mail:
host: smtp.gmail.com
port: 587
username: username@gmail.com
password: mysecret
to: John Smith <john.smith@example.com>
subject: Ansible-report
body: System {{ ansible_hostname }} has been successfully provisioned.
delegate_to: localhost
- name: Send e-mail to a bunch of users, attaching files
mail:
host: 127.0.0.1
port: 2025
subject: Ansible-report
body: Hello, this is an e-mail. I hope you like it ;-)
from: jane@example.net (Jane Jolie)
to:
- John Doe <j.d@example.org>
- Suzie Something <sue@example.com>
cc: Charlie Root <root@localhost>
attach:
- /etc/group
- /tmp/avatar2.png
headers:
- Reply-To=john@example.com
- X-Special="Something or other"
charset: us-ascii
delegate_to: localhost
- name: Sending an e-mail using the remote machine, not the Ansible controller node
mail:
host: localhost
port: 25
to: John Smith <john.smith@example.com>
subject: Ansible-report
body: System {{ ansible_hostname }} has been successfully provisioned.
- name: Sending an e-mail using Legacy SSL to the remote machine
mail:
host: localhost
port: 25
to: John Smith <john.smith@example.com>
subject: Ansible-report
body: System {{ ansible_hostname }} has been successfully provisioned.
secure: always
- name: Sending an e-mail using StartTLS to the remote machine
mail:
host: localhost
port: 25
to: John Smith <john.smith@example.com>
subject: Ansible-report
body: System {{ ansible_hostname }} has been successfully provisioned.
secure: starttls4. 剧本的使用
4.1 向ansible主机发送邮件
编写剧本文件mail.yml:
- hosts: node1
tasks:
- name: Example playbook sending mail to root
mail:
subject: System {{ ansible_hostname }} has been successfully provisioned.
delegate_to: localhost注意此处的delegate_to: localhost表示任务委派/代理，即最后由ansible主机发送邮件通知。
在执行剧本前，切换到root账号，查看mail邮件信息：
[root@master ~]# mail
No mail for root
[root@master ~]#可以看到，此时没有邮件。
检查剧本文件并执行：
[ansible@master ansible_playbooks]$ ansible-lint mail.yml
[ansible@master ansible_playbooks]$ ansible-playbook mail.yml -v
Using /etc/ansible/ansible.cfg as config file
PLAY [node1] ***********************************************************************************************************
TASK [Gathering Facts] *************************************************************************************************
ok: [node1]
TASK [Example playbook sending mail to root] ***************************************************************************
ok: [node1 -> localhost] => {"changed": false, "msg": "Mail sent successfully", "result": {}}
PLAY RECAP *************************************************************************************************************
node1 : ok=2 changed=0 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
[ansible@master ansible_playbooks]$此时切换到root账号，查看邮件信息：
[root@master ~]# mail
Heirloom Mail version 12.5 7/5/10. Type ? for help.
"/var/spool/mail/root": 1 message 1 new
>N 1 root@master.loca Tue Nov 8 20:35 28/984 "System node1 has been successfully provisioned."
& next
Message 1:
From root@kmaster.localdomain Tue Nov 8 20:35:27 2022
Return-Path: <root@master.localdomain>
X-Original-To: root
Delivered-To: root@master.localdomain
Content-Type: multipart/mixed; -charset="utf-8";
boundary="===============5024072418243279231=="
From: root@master.localdomain
Date: Tue, 08 Nov 2022 20:35:27 +0800
Subject: System node1 has been successfully provisioned.
X-Mailer: Ansible mail module
To: root@master.localdomain
Cc:
Status: R
Part 1:
Content-Type: text/plain; charset="utf-8"
System node1 has been successfully provisioned.
&通过以上测试，我们通过执行ansible剧本给ansible主机发送了邮件通知。
通常我们更希望能够真的收到一封真实的邮件。
4.2 通过SMTP邮件服务器发送邮件
我们使用阿里云企业邮箱发送邮件。对应的SMTP信息可参考：阿里邮箱IMAP、POP、SMTP地址和端口信息
| 协议 | 服务器地址 | 服务器端口号(常规) | 服务器端口号(加密) |
|---|---|---|---|
| SMTP | smtp.qiye.aliyun.com | 25 | 465 |
推荐您使用加密端口连接，更加安全，使用时请注意加密端口是否已在您的本地电脑和网络中开放。
编写剧本文件：
- hosts: node1
tasks:
- name: Sending an e-mail using Gmail SMTP servers
mail:
host: smtp.qiye.aliyun.com
port: 465
secure: always
username: notice@hellogitlab.com
# SMTP服务器密码信息，请注意保密
password: securepassword
# from: notice@hellogitlab.com
to: 梅朝辉 <mzh@hellogitlab.com>
subject: Ansible-report
body: System {{ ansible_hostname }} has been successfully provisioned.
delegate_to: localhost此时执行剧本：
[ansible@master ansible_playbooks]$ ansible-playbook mail.yml -v
Using /etc/ansible/ansible.cfg as config file
PLAY [node1] ***********************************************************************************************************
TASK [Gathering Facts] *************************************************************************************************
ok: [node1]
TASK [Sending an e-mail using Gmail SMTP servers] **********************************************************************
An exception occurred during task execution. To see the full traceback, use -vvv. The error was: SMTPSenderRefused: (500, 'Error: bad syntax', 'root')
fatal: [node1 -> localhost]: FAILED! => {"changed": false, "msg": "Failed to send mail to 'mzh@hellogitlab.com': (500, 'Error: bad syntax', 'root')", "rc": 1}
PLAY RECAP *************************************************************************************************************
node1 : ok=1 changed=0 unreachable=0 failed=1 skipped=0 rescued=0 ignored=0
[ansible@master ansible_playbooks]$可以看到，发送失败，原因是我们没有设置发件人，我们将第10行的from: notice@hellogitlab.com配置打开：
- hosts: node1
tasks:
- name: Sending an e-mail using Gmail SMTP servers
mail:
host: smtp.qiye.aliyun.com
port: 465
secure: always
username: notice@hellogitlab.com
# SMTP服务器密码信息，请注意保密
password: securepassword
from: notice@hellogitlab.com
to: 梅朝辉 <mzh@hellogitlab.com>
subject: Ansible-report
body: System {{ ansible_hostname }} has been successfully provisioned.
delegate_to: localhost此时再执行剧本：
[ansible@master ansible_playbooks]$ ansible-lint mail.yml
[ansible@master ansible_playbooks]$ ansible-playbook mail.yml -v
Using /etc/ansible/ansible.cfg as config file
PLAY [node1] ***********************************************************************************************************
TASK [Gathering Facts] *************************************************************************************************
ok: [node1]
TASK [Sending an e-mail using Gmail SMTP servers] **********************************************************************
ok: [node1 -> localhost] => {"changed": false, "msg": "Mail sent successfully", "result": {}}
PLAY RECAP *************************************************************************************************************
node1 : ok=2 changed=0 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0

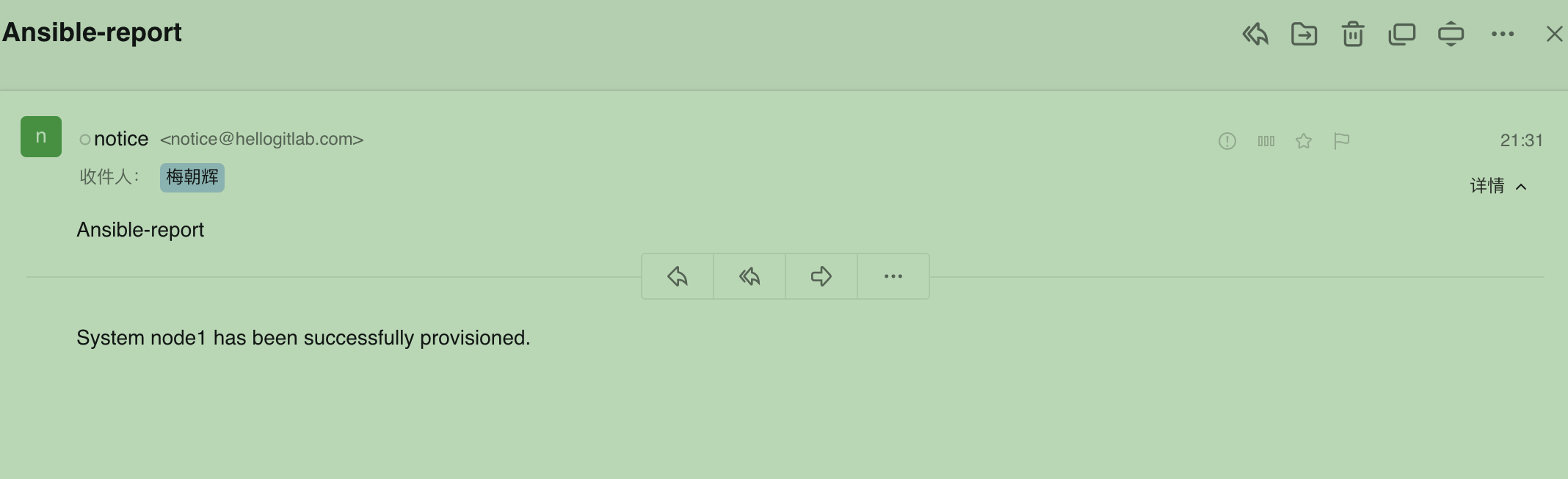

[ansible@master ansible_playbooks]$登陆邮箱服务器网页端，可以查看最新的邮件，可以看到，已经收到邮件了：
你可以参照官方示例，结合实际应用场景给用户或管理员发送邮件通知，方便对剧本进行跟踪并及时进行后续操作。
