nmtui 命令

使用 nmtui 命令配置网络参数
[root@linuxprobe network-scripts]# nmtui ## 执行 nmtui 命令弹出图形用户界面

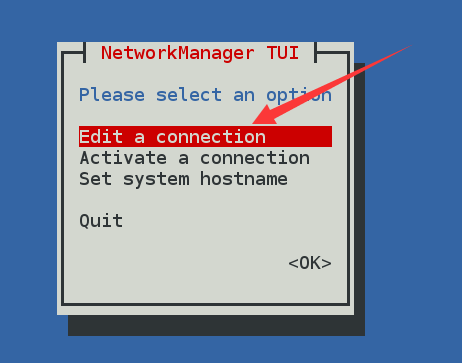

选中 Edit a connection，回车

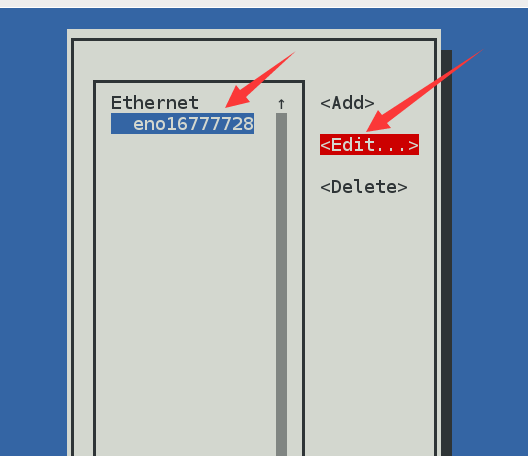

选中网卡名称，选中 Edit，回车

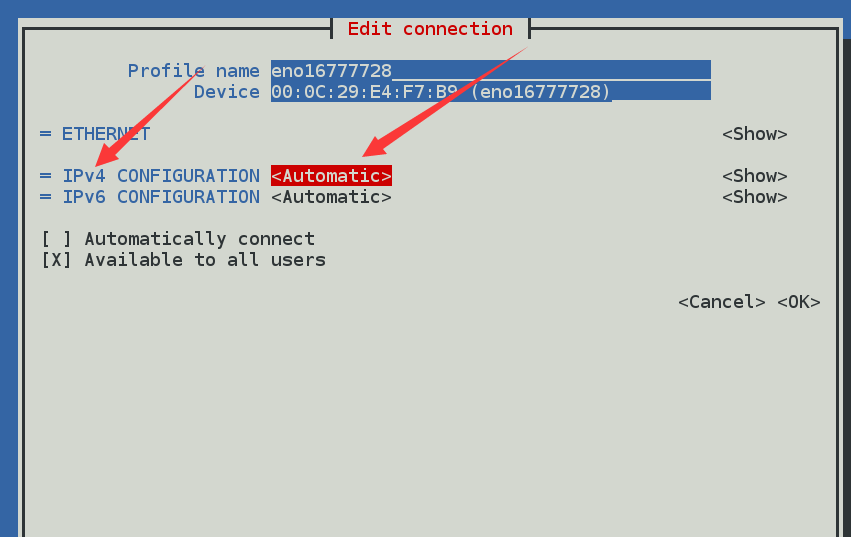

选中 IPv4 的 Automatic，回车

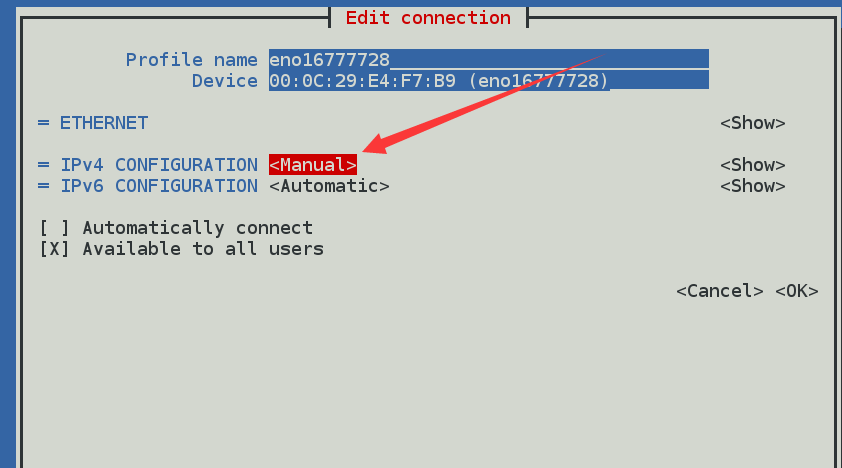

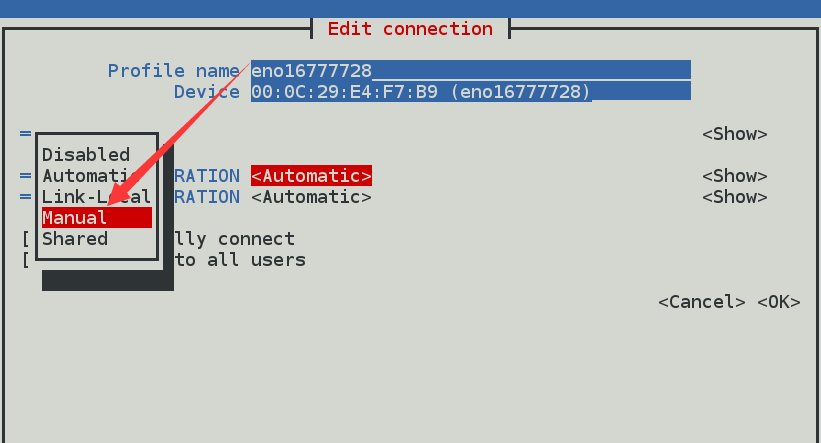

选中 Manual，回车

变成如下界面：

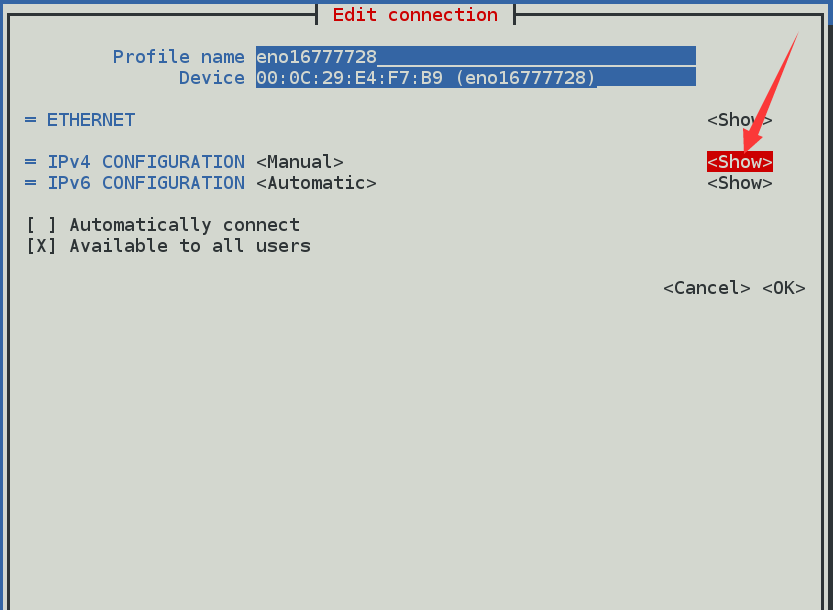

选中 Show，回车

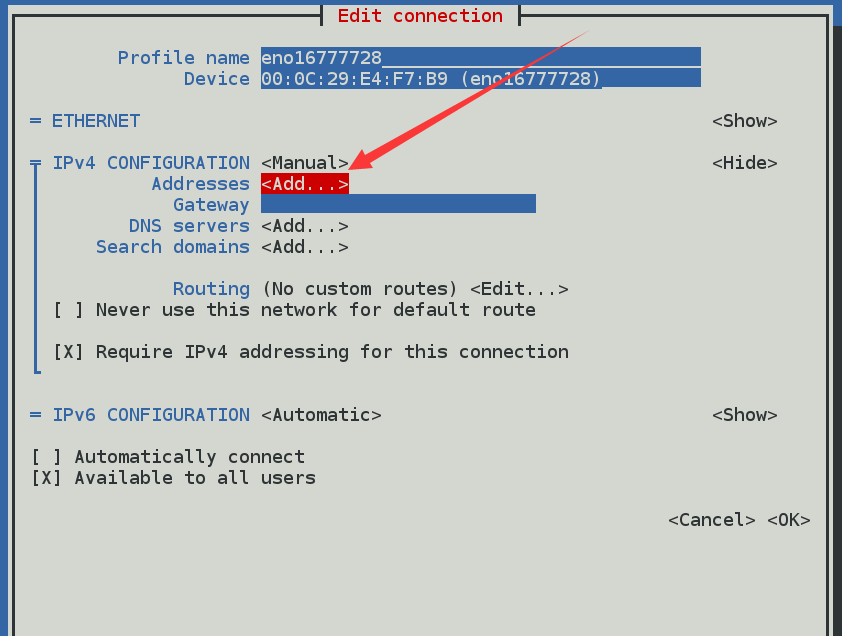

出现如下界面，选中 Add，回车：

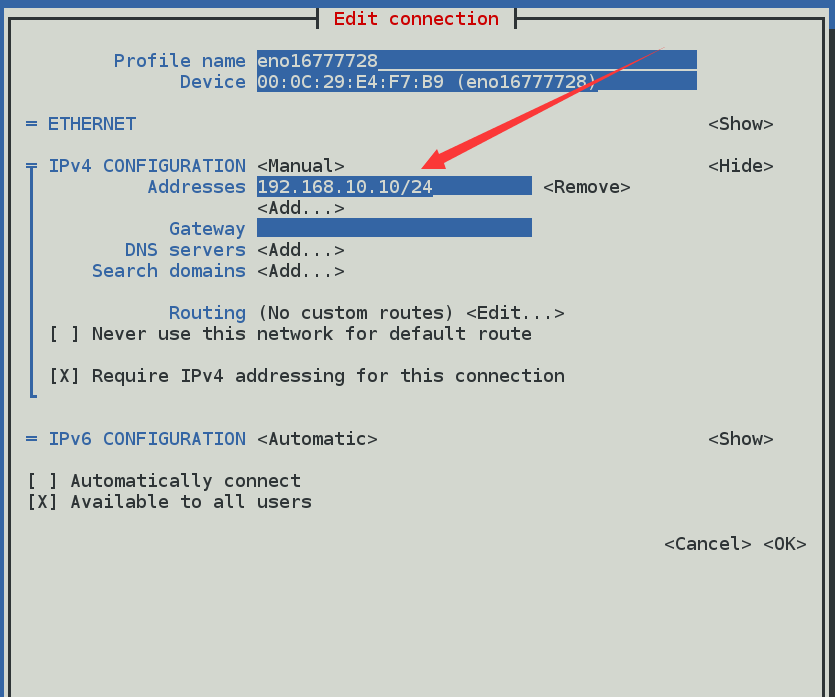

在 Addresses 后输入：192.168.10.10/24

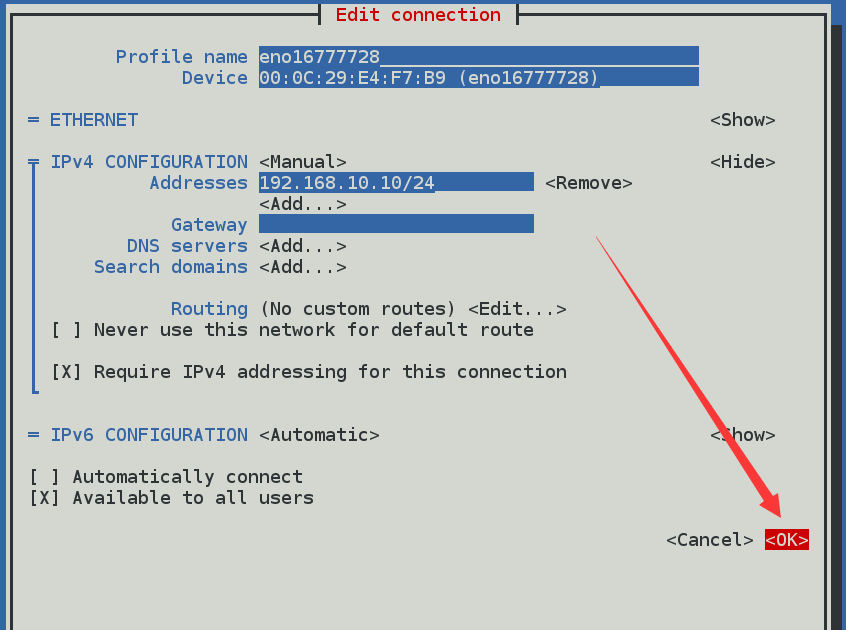

选中 OK，回车

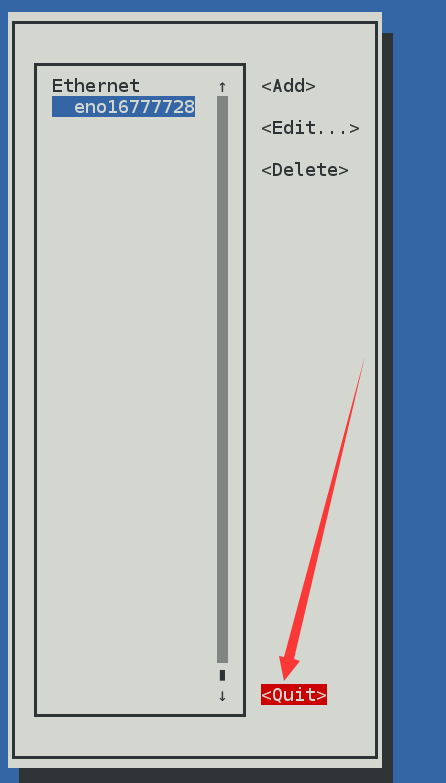

选中 Quit, 回车退出

4、设置重启系统自动激活网卡

[root@linuxprobe network-scripts]# ls
ifcfg-eno16777728  ifdown-ippp  ifdown-routes    ifup          ifup-ipv6   ifup-ppp       ifup-tunnel
ifcfg-lo           ifdown-ipv6  ifdown-sit       ifup-aliases  ifup-isdn   ifup-routes    ifup-wireless
ifdown             ifdown-isdn  ifdown-Team      ifup-bnep     ifup-plip   ifup-sit       init.ipv6-global
ifdown-bnep        ifdown-post  ifdown-TeamPort  ifup-eth      ifup-plusb  ifup-Team      network-functions
ifdown-eth         ifdown-ppp   ifdown-tunnel    ifup-ippp     ifup-post   ifup-TeamPort  network-functions-ipv6
[root@linuxprobe network-scripts]# vim ifcfg-eno16777728
TYPE=Ethernet
BOOTPROTO=none
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
NAME=eno16777728
UUID=e72a626f-2946-4285-9edf-2f5a6b172712
ONBOOT=yes  ## 这里设置为yes
HWADDR=00:0C:29:E4:F7:B9
IPADDR0=192.168.10.10
PREFIX0=24
IPV6_PEERDNS=yes
IPV6_PEERROUTES=yes



















5、手动重启网卡

[root@linuxprobe network-scripts]# systemctl restart network



















6、ifconfig 命令查看配置效果

[root@linuxprobe network-scripts]# ifconfig  ## 多出了IP地址
eno16777728: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.10.10  netmask 255.255.255.0  broadcast 192.168.10.255
        inet6 fe80::20c:29ff:fee4:f7b9  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:e4:f7:b9  txqueuelen 1000  (Ethernet)
        RX packets 3  bytes 729 (729.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 30  bytes 4291 (4.1 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 0  (Local Loopback)
        RX packets 898  bytes 72716 (71.0 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 898  bytes 72716 (71.0 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0



















7、使用 ping 命令测试联通性

[root@linuxprobe network-scripts]# ping -c 3 192.168.10.10  ## 畅通
PING 192.168.10.10 (192.168.10.10) 56(84) bytes of data.
64 bytes from 192.168.10.10: icmp_seq=1 ttl=64 time=0.035 ms
64 bytes from 192.168.10.10: icmp_seq=2 ttl=64 time=0.040 ms
64 bytes from 192.168.10.10: icmp_seq=3 ttl=64 time=0.040 ms

--- 192.168.10.10 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2000ms
rtt min/avg/max/mdev = 0.035/0.038/0.040/0.005 ms
